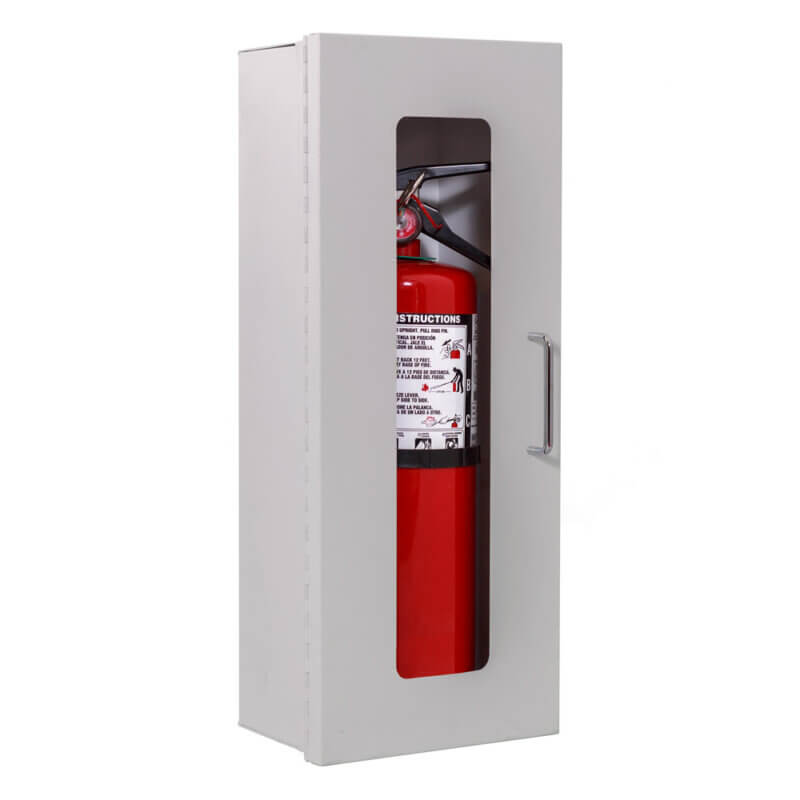

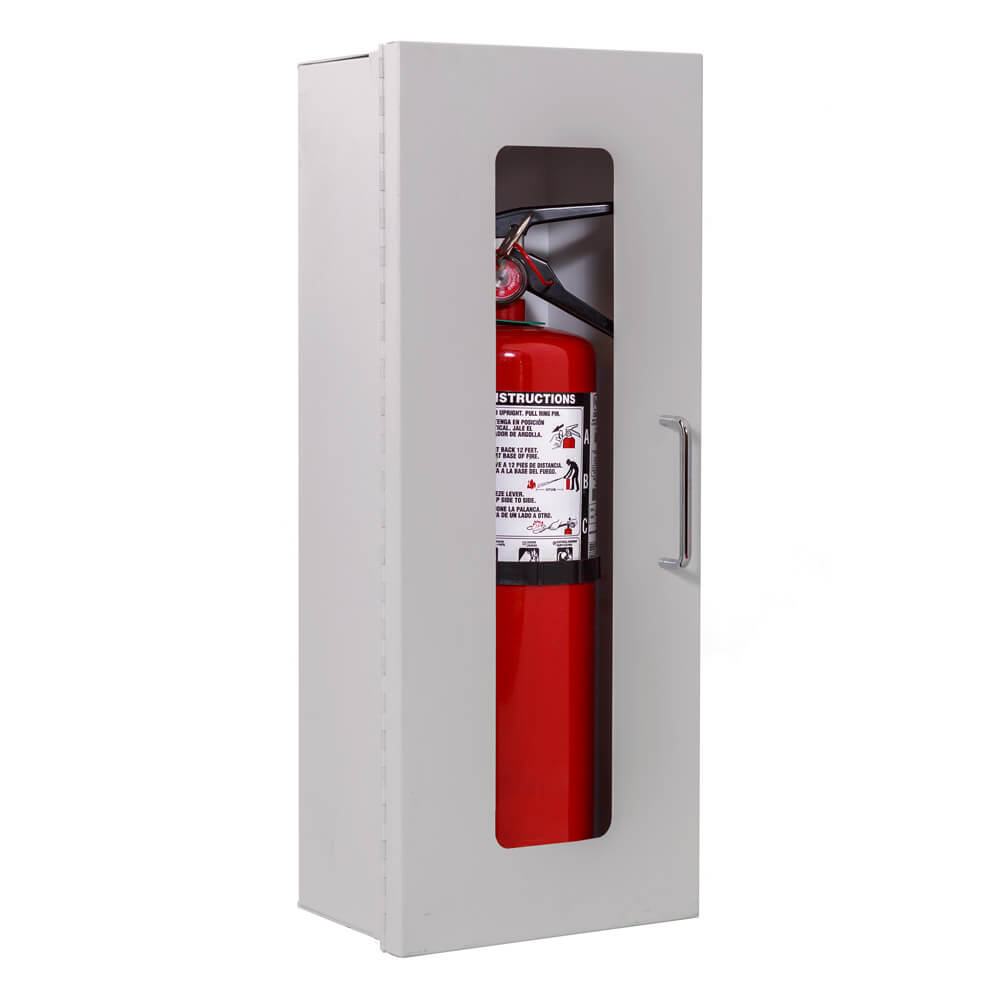

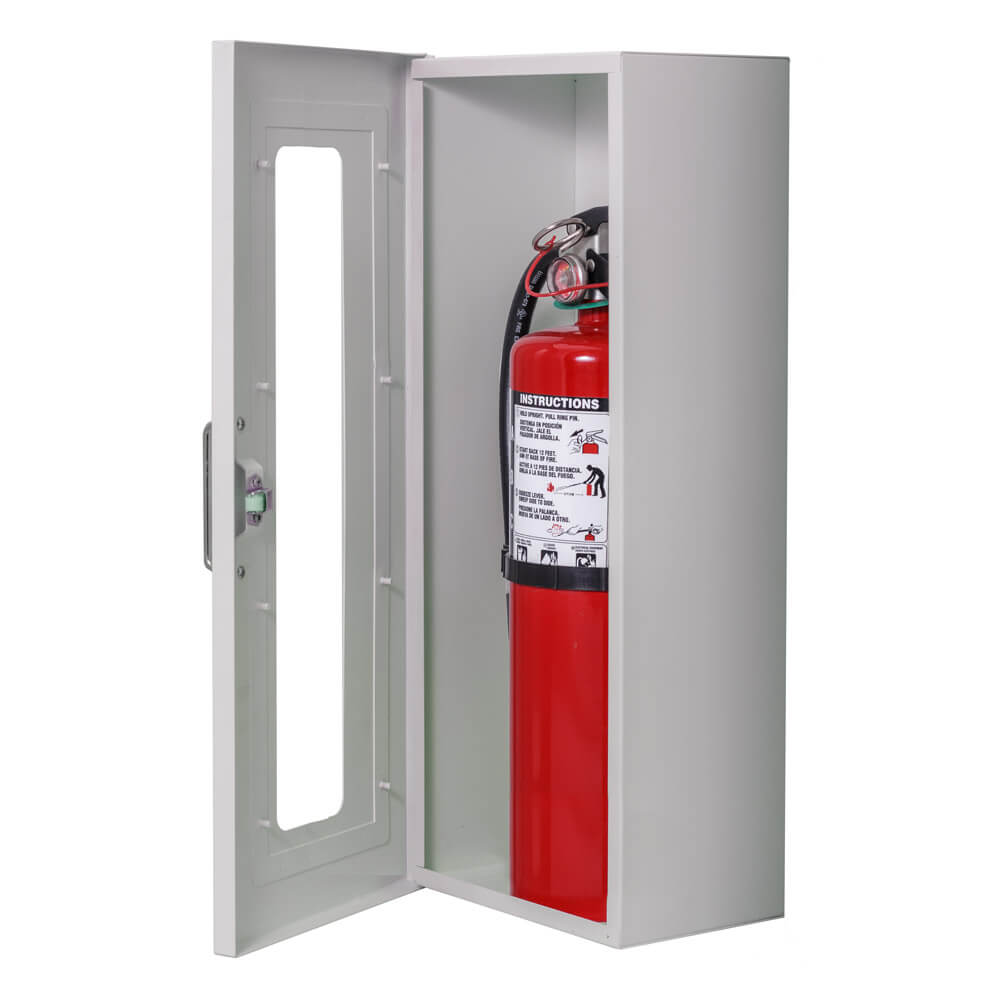

106-TN Titan Aluminum Series Surface Mounted 10 lb. Fire Extinguisher Cabinet with Full Glass Door (Non-Rated)

$139.59

The Model 106-TN cabinet features a full glass door and is constructed of a non-extruded .063 thick aluminum front and tub, both with baked grey enamel coating. Cabinet is designed to be surface mounted and has a square trim. Cabinet comes standard with chrome steel handle and clear acrylic glazing.

Note: Extinguisher sold separately.

Weight 12 lbs
Model #

106-TN

Cabinet Style

Surface Mounted

Cabinet Type

Non-Rated

Door Style

Full Glass

Series

Titan Aluminum

Accommodates Extinguisher Size

10 lb.

Interior Tub - Width

9 1/2"

Interior Tub - Height

23 3/4"

Interior Tub - Depth

6"

Overall - Width

10"

Overall - Height

24 1/2"

Finish

Full Aluminum w/ Baked Grey Enamel

Glazing Options

Clear Acrylic, Clear Tempered Glass

Handle Options

Chrome "D" Handle, Chrome "D" Handle w/ Safety Break Lock, Aluminum Die Cast Red "Fire" Handle, ADA "Recessed" Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Titan Non-Rated Fire Extinguisher Cabinet Dimension Drawing
