516-TN Titan Aluminum Series Semi-Recessed 5 lb. Fire Extinguisher Cabinet with Full Glass Door (Non-Rated)

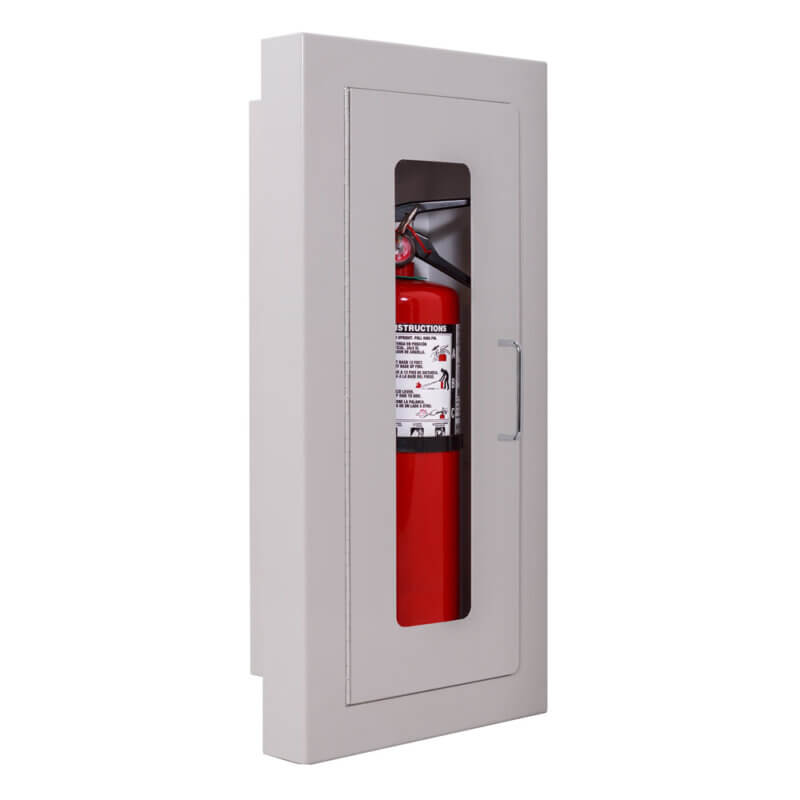

The Model 516-TN cabinet features a full glass door and is constructed of a non-extruded .063 thick aluminum front and steel tub, both with baked grey enamel coating. Cabinet is designed to be semi-recessed in the wall and has a square trim. Cabinet comes with chrome steel handle and clear acrylic glazing.

Note: Extinguisher sold separately.

Finish: Baked Grey Enamel

Lock: Safety Break Lock

Weight 8 lbs
Model #


Cabinet Style


Cabinet Type


Door Style

Full Glass


Titan Aluminum

Accommodates Extinguisher Size

5 lb.

Interior Tub - Width


Interior Tub - Height


Interior Tub - Depth


Overall - Width

10 3/4"

Overall - Height

19 3/4"

Finish Options

Full Aluminum with Baked Grey Enamel

Glazing Options

Clear Acrylic, Clear Tempered Glass

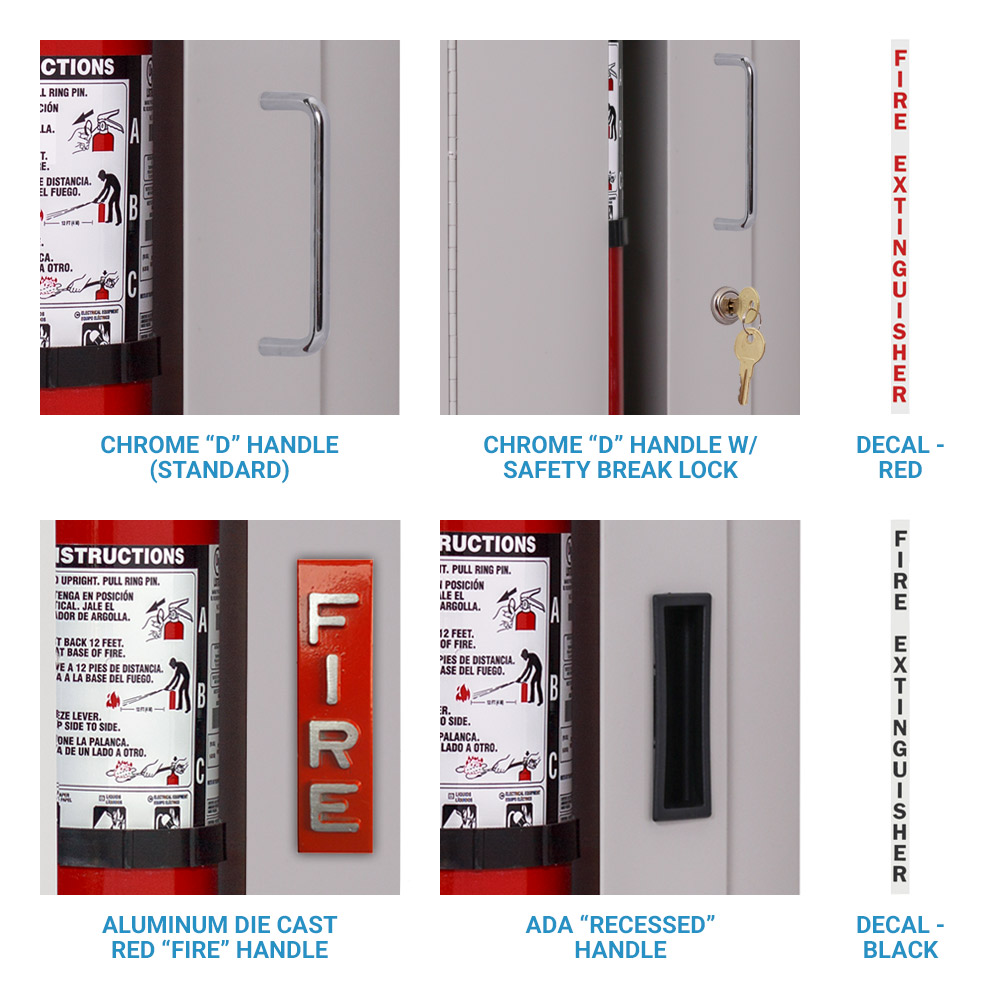

Handle Options

Chrome "D" Handle, Chrome "D" Handle w/ Safety Break Lock, Aluminum Die Cast Red "Fire" Handle, ADA "Recessed" Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Titan Non-Rated Fire Extinguisher Cabinet Dimension Drawing
