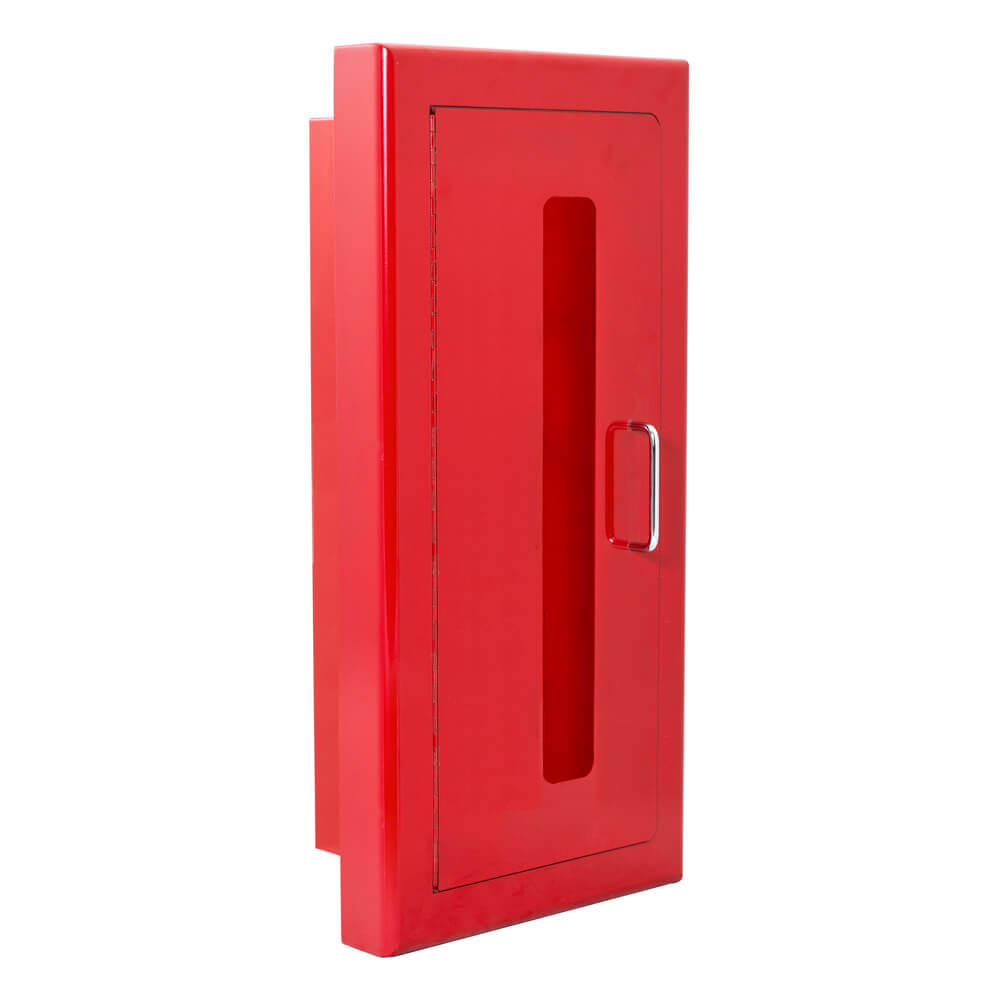

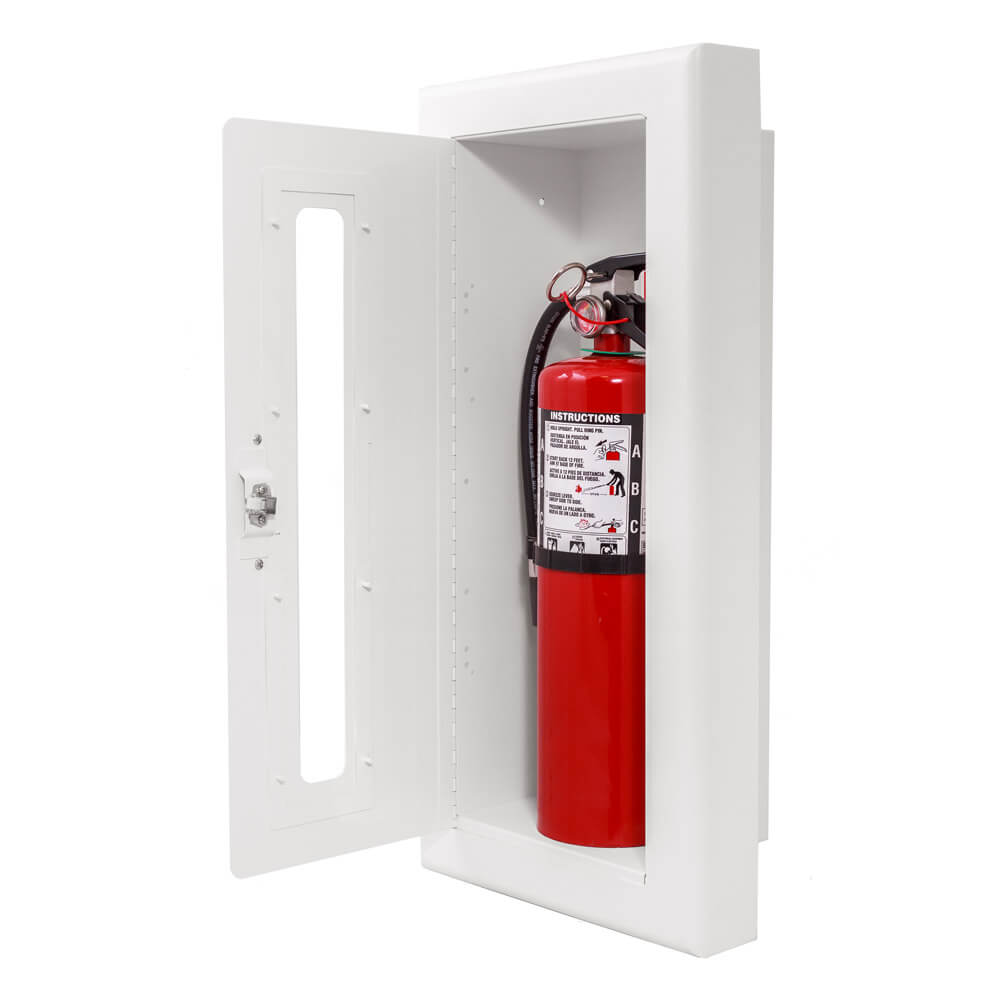

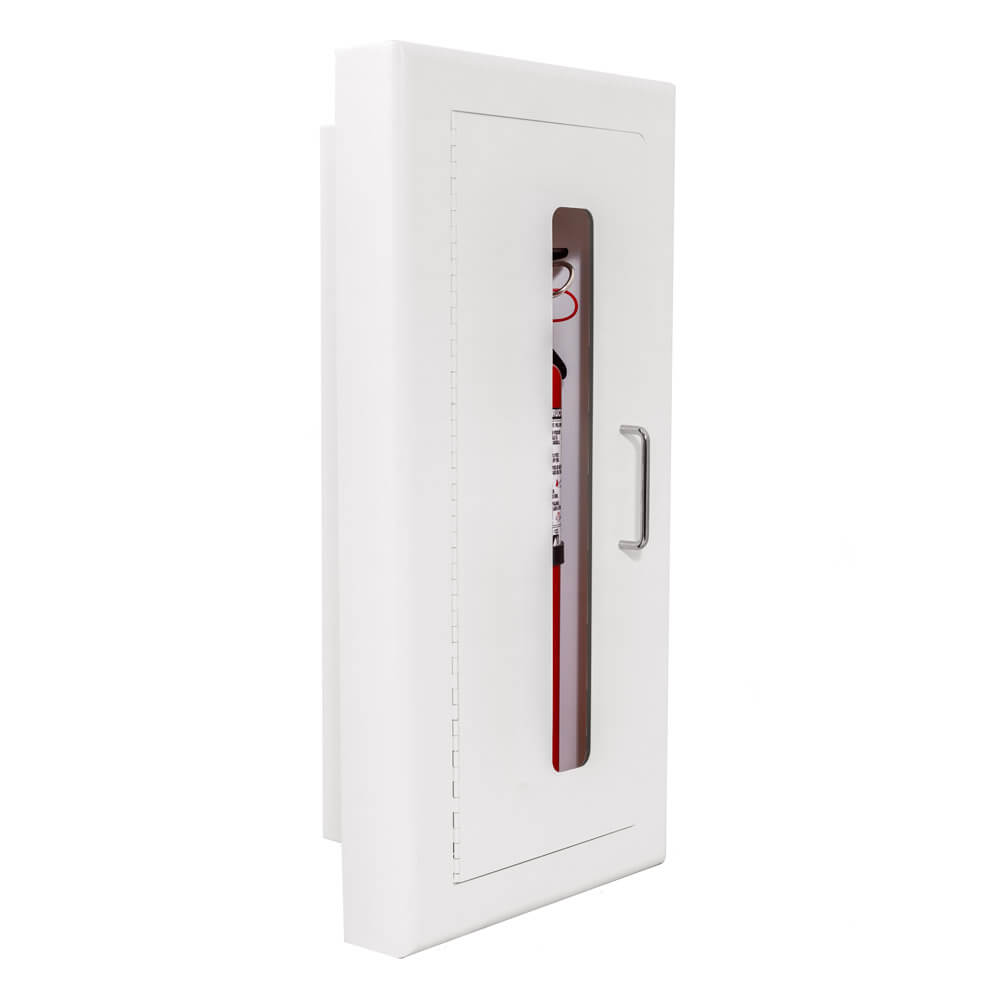

218-MR Murano Radius Series Semi-Recessed 20 lb. Fire Extinguisher Cabinet with Vertical Duo Door (Non-Rated)

$168.75

The Model 218-MR cabinet features a vertical duo door, 16 gauge cold rolled steel front and 22 gauge cold rolled steel tub. Standard finish is baked white enamel over rust inhibiting phosphate treated steel. Other options include red or black enamel coat and stainless steel. Cabinet is designed to be semi-recessed into the wall and has radius corners. Cabinet comes standard with chrome handle and clear acrylic glazing.

Note: Extinguisher sold separately.

Weight 35 lbs
Model #

218-MR

Cabinet Style

Semi-Recessed

Cabinet Type

Non-Rated

Door Style

Vertical Duo

Series

Murano Radius

Accommodates Extinguisher Size

20 lb.

Interior Tub - Width

12"

Interior Tub - Height

27"

Interior Tub - Depth

8"

Overall - Width

16"

Overall - Height

31"

Rough Opening - Width

12 1/4"

Rough Opening - Height

27 1/4"

Rough Opening - Depth

5"

Trim Size

3"

Finish Options

Baked White Enamel, Baked Red Enamel, Baked Black Enamel, Stainless Steel Front w/ White Tub, Full Stainless Steel

Glazing Options

Clear Acrylic, Clear Tempered Glass

Handle Options

Chrome "D" Handle, Chrome "D" Handle w/ Safety Break Lock, Aluminum Die Cast Red "Fire" Handle, ADA "Recessed" Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Murano Non-Rated Fire Extinguisher Cabinet Dimension Drawing
