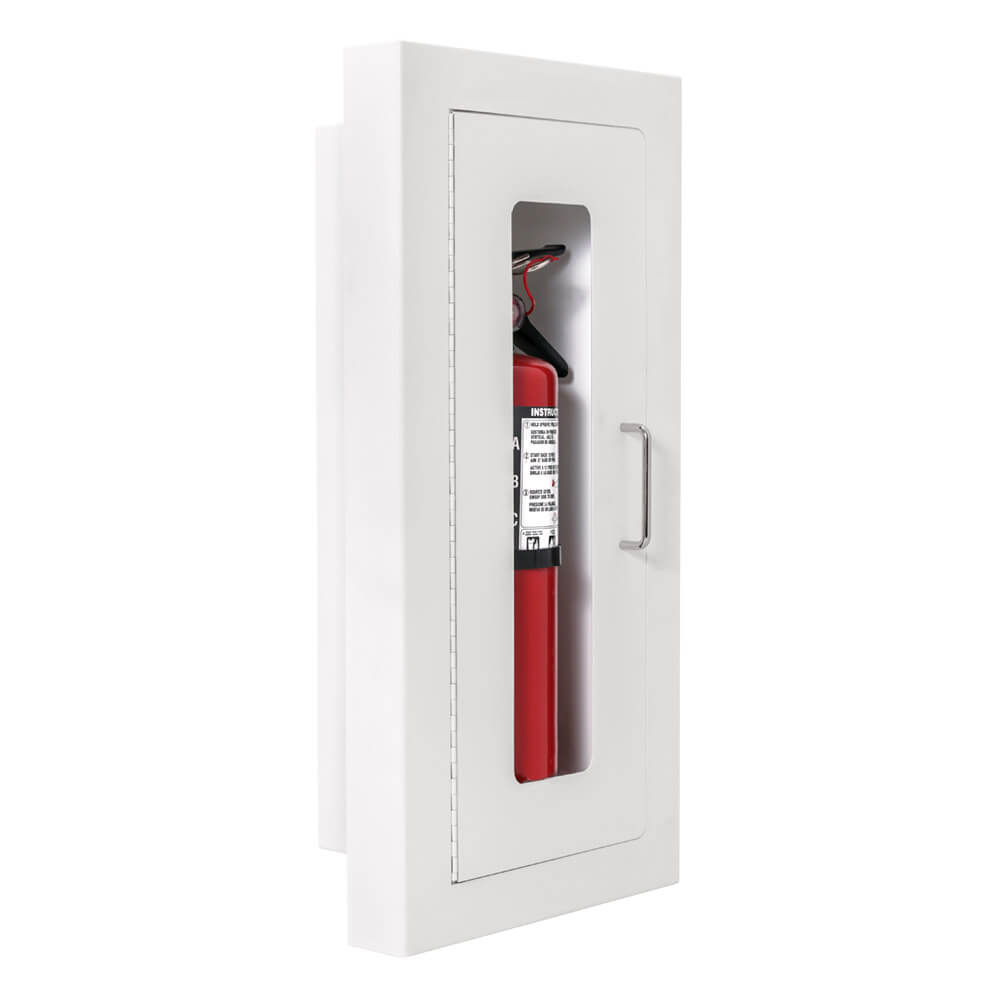

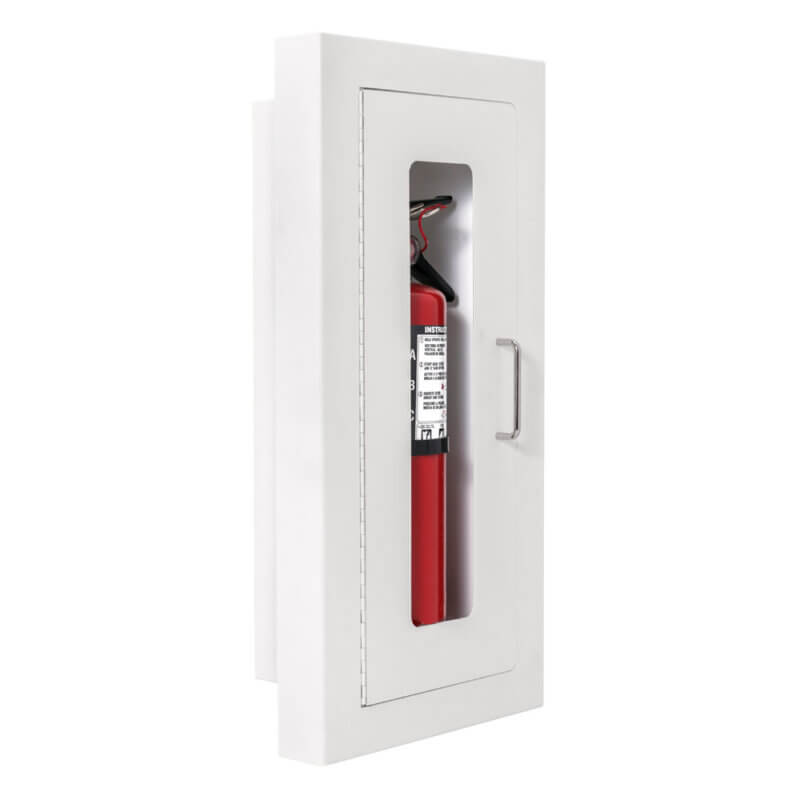

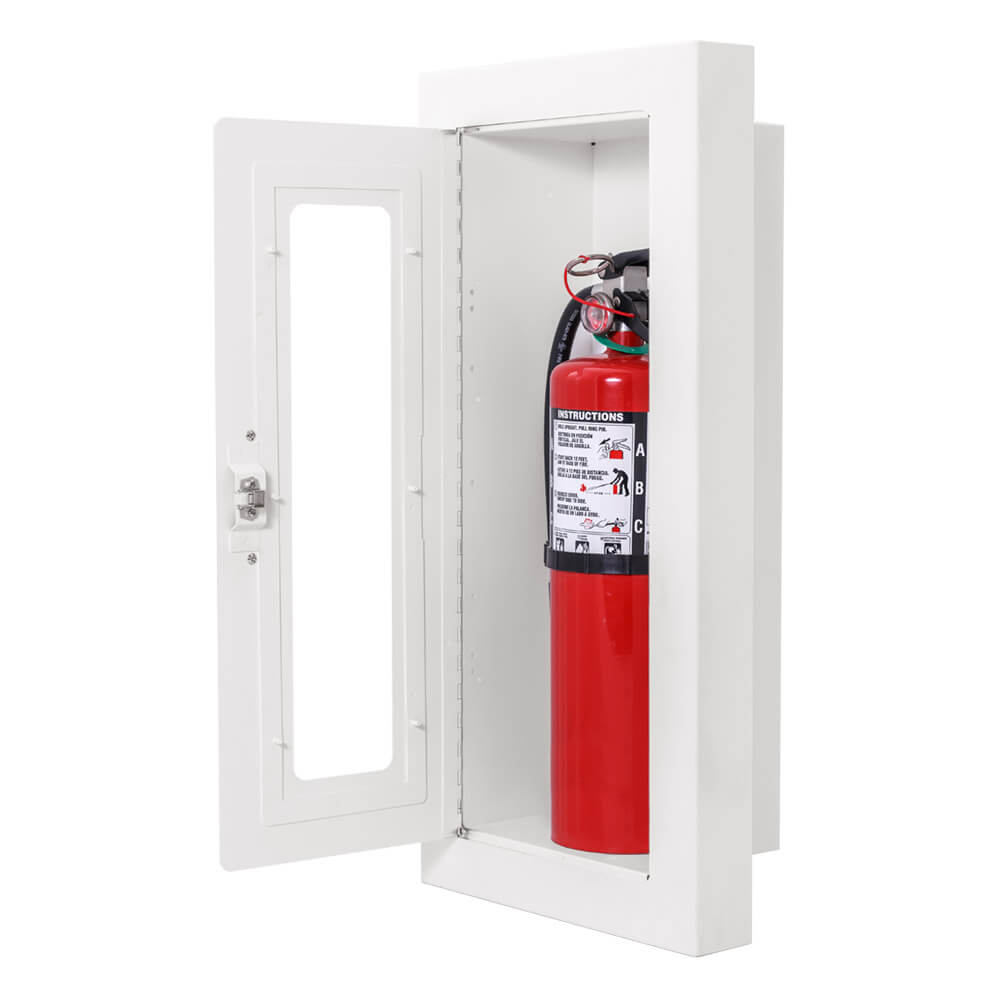

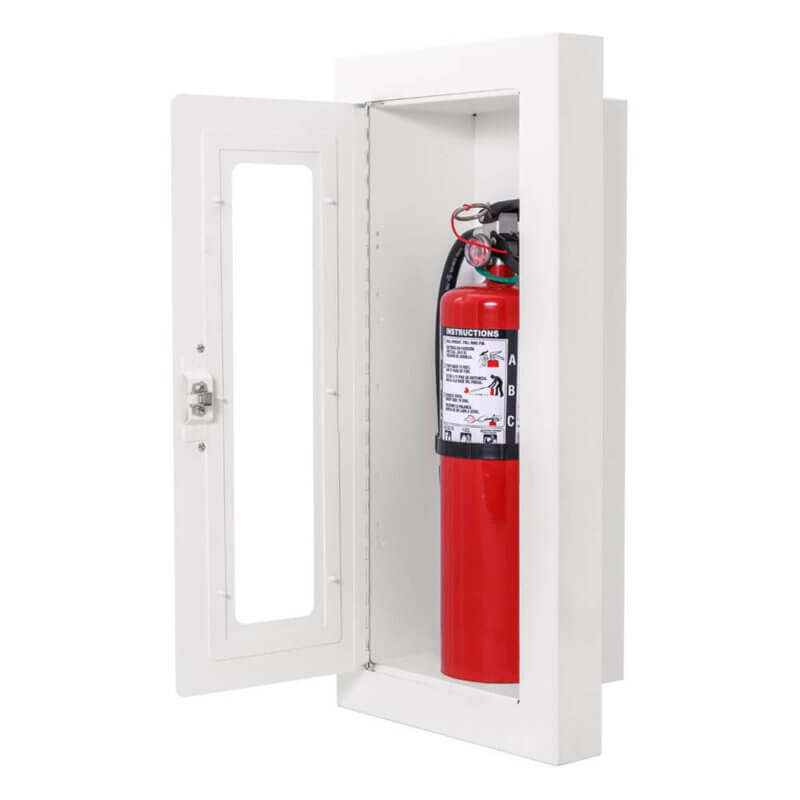

516-EL-SG Elite Architectural Series Semi-Recessed 5 lb. Extinguisher Cabinet with Full Glass Door (Fire-Rated)

$127.24

The Model 516-EL-SG SAFEGUARD fire-rated cabinet features a full glass door, 16 gauge cold rolled steel front and 22 gauge cold rolled steel tub. Standard finish is baked white enamel over rust inhibiting phosphate treated steel. Other options include red or black enamel coat and stainless steel. Cabinet is designed to be semi-recessed into the wall and has a square trim. Cabinet comes standard with chrome handle and clear acrylic glazing.

Note: Extinguisher sold separately.

Weight 20 lbs
Model #

516-EL-SG

Cabinet Style

Semi-Recessed

Cabinet Type

Fire-Rated

Door Style

Full Glass

Series

Elite Architectural

Accommodates Extinguisher Size

5 lb.

Interior Tub - Width

8"

Interior Tub - Height

17"

Interior Tub - Depth

5"

Overall - Width

10 3/4"

Overall - Height

19 3/4"

Rough Opening - Width

10"

Rough Opening - Height

19"

Rough Opening - Depth

4 1/2"

Trim Size

1 3/4"

Finish Options

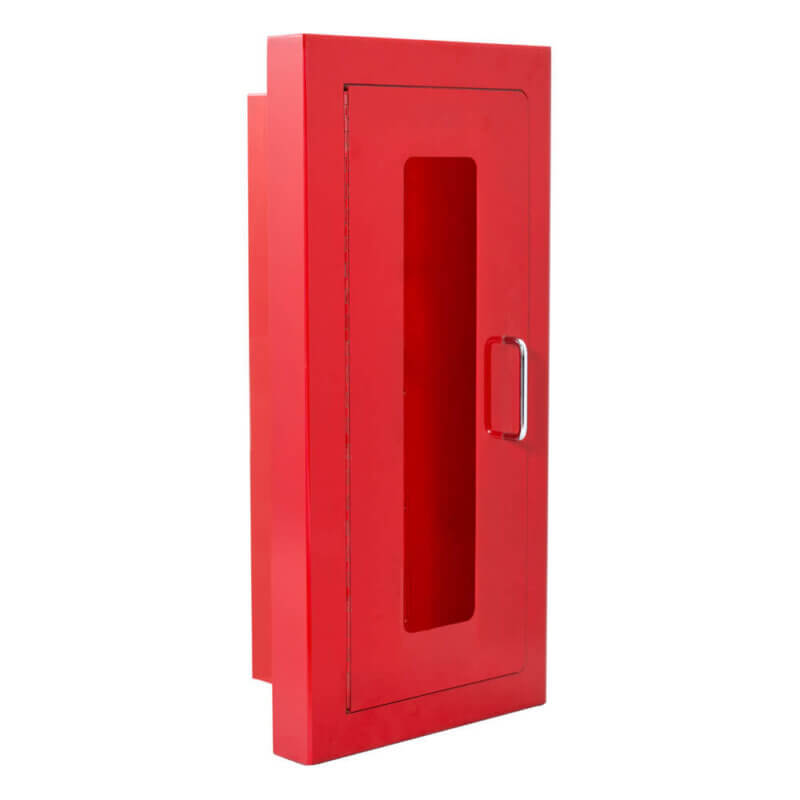

Baked White Enamel, Baked Red Enamel, Baked Black Enamel, Stainless Steel Front w/ White Tub

Glazing Options

Clear Acrylic, Clear Tempered Glass

Handle Options

Chrome "D" Handle, Chrome "D" Handle w/ Safety Break Lock, Aluminum Die Cast Red "Fire" Handle, ADA "Recessed" Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Elite Fire-Rated Fire Extinguisher Cabinet Dimension Drawing
