Elite Architectural Series Fire Extinguisher Cabinet Sizes & Specifications

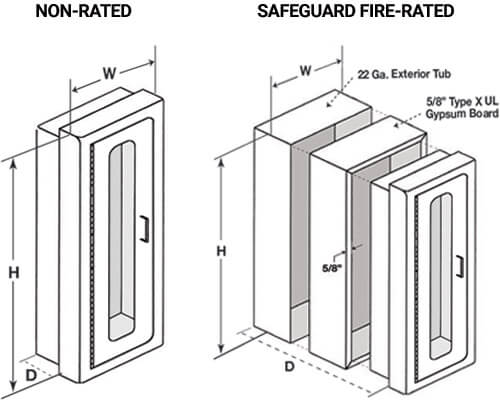

Elite Fire Extinguisher Cabinet Dimension Drawing

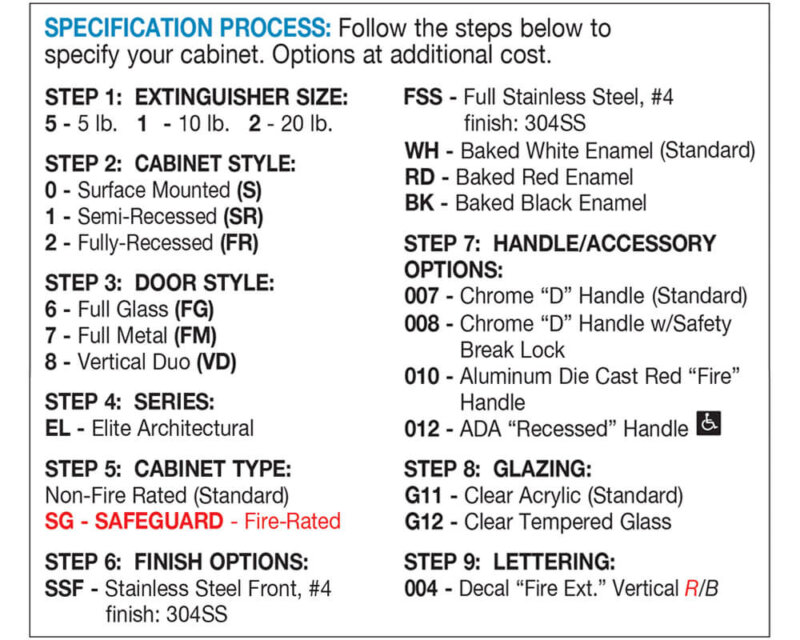

Safety One Elite Series Specification Guide

SURFACE MOUNTED

(Click on Model # to view product details)

Model # Door Style Accom. Ext Size Interior Tub Overall Rough Opening Trim Size Price
W H D W H W H D
Non-Rated
506-EL Full Glass 5 lb. 8" 16 3/4" 5" 8 1/2" 17 1/2" - - - - $49.50 Buy Now
507-EL Full Metal 5 lb. 8" 16 3/4" 5" 8 1/2" 17 1/2" - - - - $56.09 Buy Now
508-EL Vertical Duo 5 lb. 8" 16 3/4" 5" 8 1/2" 17 1/2" - - - - $56.09 Buy Now
106-EL Full Glass 10 lb. 9 1/2" 23 3/4" 6" 10" 24 1/2" - - - - $69.80 Buy Now
107-EL Full Metal 10 lb. 9 1/2" 23 3/4" 6" 10" 24 1/2" - - - - $69.80 Buy Now
108-EL Vertical Duo 10 lb. 9 1/2" 23 3/4" 6" 10" 24 1/2" - - - - $69.80 Buy Now
206-EL Full Glass 20 lb. 12" 27" 8" 12 1/2" 27 1/2" - - - - $86.67 Buy Now
207-EL Full Metal 20 lb. 12" 27" 8" 12 1/2" 27 1/2" - - - - $86.67 Buy Now
208-EL Vertical Duo 20 lb. 12" 27" 8" 12 1/2" 27 1/2" - - - - $86.67 Buy Now

SEMI-RECESSED

(Click on Model # to view product details)

Model # Door Style Accom. Ext Size Interior Tub Overall Rough Opening Trim Size Price
W H D W H W H D
Non-Rated
516-EL Full Glass 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 8 1/4" 17 1/4" 3 1/2" 1 1/2" $61.09 Buy Now
517-EL Full Metal 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 8 1/4" 17 1/4" 3 1/2" 1 1/2" $61.09 Buy Now
518-EL Vertical Duo 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 8 1/4" 17 1/4" 3 1/2" 1 1/2" $61.09 Buy Now
116-EL Full Glass 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 9 3/4" 24 1/4" 3 1/2" 2 1/2" $72.90 Buy Now
117-EL Full Metal 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 9 3/4" 24 1/4" 3 1/2" 2 1/2" $72.90 Buy Now
118-EL Vertical Duo 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 9 3/4" 24 1/4" 3 1/2" 2 1/2" $72.90 Buy Now
216-EL Full Glass 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 5" 3" $103.88 Buy Now
217-EL Full Metal 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 5" 3" $103.88 Buy Now
218-EL Vertical Duo 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 5" 3" $103.88 Buy Now
Fire-Rated SAFEGUARD
516-EL-SG Full Glass 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 9 3/4" 18 3/4" 4" 1 1/2" $127.24 Buy Now
517-EL-SG Full Metal 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 9 3/4" 18 3/4" 4" 1 1/2" $127.24 Buy Now
518-EL-SG Vertical Duo 5 lb. 8" 17" 5" 10 3/4" 19 3/4" 9 3/4" 18 3/4" 4" 1 1/2" $127.24 Buy Now
116-EL-SG Full Glass 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 11 1/4" 25 3/4" 3 3/4" 3" $149.38 Buy Now
117-EL-SG Full Metal 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 11 1/4" 25 3/4" 3 3/4" 3" $149.38 Buy Now
118-EL-SG Vertical Duo 10 lb. 9 1/2" 24" 6" 13 1/2" 28 1/2" 11 1/4" 25 3/4" 3 3/4" 3" $149.38 Buy Now
216-EL-SG Full Glass 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 4 3/4" 4" $191.90 Buy Now
217-EL-SG Full Metal 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 4 3/4" 4" $191.90 Buy Now
218-EL-SG Vertical Duo 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 4 3/4" 4" $191.90 Buy Now

FULLY-RECESSED

(Click on Model # to view product details)

Model # Door Style Accom. Ext Size Interior Tub Overall Rough Opening Trim Size Price
W H D W H W H D
Non-Rated
526-EL Full Glass 5 lb. 8" 16 3/4" 5" 12" 21" 8 1/4" 17 1/4" 4 3/4" 1/4" $60.62 Buy Now
527-EL Full Metal 5 lb. 8" 16 3/4" 5" 12" 21" 8 1/4" 17 1/4" 4 3/4" 1/4" $60.62 Buy Now
528-EL Vertical Duo 5 lb. 8" 16 3/4" 5" 12" 21" 8 1/4" 17 1/4" 4 3/4" 1/4" $63.83 Buy Now
126-EL Full Glass 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 9 3/4" 24 1/4" 5 3/4" 1/4" $63.92 Buy Now
127-EL Full Metal 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 9 3/4" 24 1/4" 5 3/4" 1/4" $65.00 Buy Now
128-EL Vertical Duo 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 9 3/4" 24 1/4" 5 3/4" 1/4" $85.00 Buy Now
226-EL Full Glass 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 7 3/4" 1/4" $82.62 Buy Now
227-EL Full Metal 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 7 3/4" 1/4" $82.62 Buy Now
228-EL Vertical Duo 20 lb. 12" 27" 8" 16" 31" 12 1/4" 27 1/4" 7 3/4" 1/4" $82.62 Buy Now
Fire-Rated SAFEGUARD
526-EL-SG Full Glass 5 lb. 8" 16 3/4" 5" 12" 21" 9 3/4" 18 3/4" 5 1/2" 1/4" $127.91 Buy Now
527-EL-SG Full Metal 5 lb. 8" 16 3/4" 5" 12" 21" 9 3/4" 18 3/4" 5 1/2" 1/4" $127.91 Buy Now
528-EL-SG Vertical Duo 5 lb. 8" 16 3/4" 5" 12" 21" 9 3/4" 18 3/4" 5 1/2" 1/4" $127.91 Buy Now
126-EL-SG Full Glass 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 11 1/4" 25 3/4" 6 1/2" 1/4" $138.98 Buy Now
127-EL-SG Full Metal 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 11 1/4" 25 3/4" 6 1/2" 1/4" $138.98 Buy Now
128-EL-SG Vertical Duo 10 lb. 9 1/2" 24" 6" 14" 28 1/2" 11 1/4" 25 3/4" 6 1/2" 1/4" $138.98 Buy Now
226-EL-SG Full Glass 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 8 1/2" 1/4" $168.75 Buy Now
227-EL-SG Full Metal 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 8 1/2" 1/4" $168.75 Buy Now
228-EL-SG Vertical Duo 20 lb. 12" 27" 8" 16" 31" 13 1/2" 28 3/4" 8 1/2" 1/4" $168.75 Buy Now
