208-EL Elite Architectural Series Surface Mounted 20 lb. Fire Extinguisher Cabinet with Vertical Duo Door (Non-Rated)

$95.34

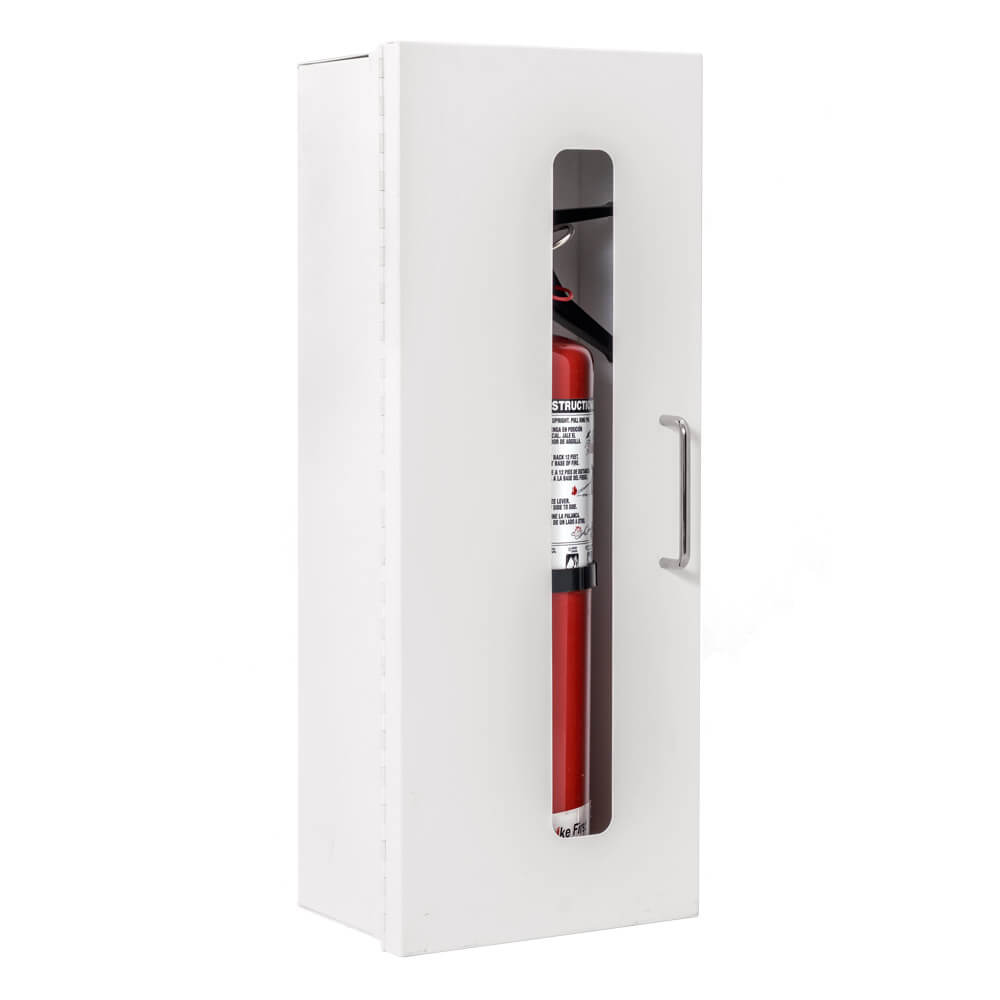

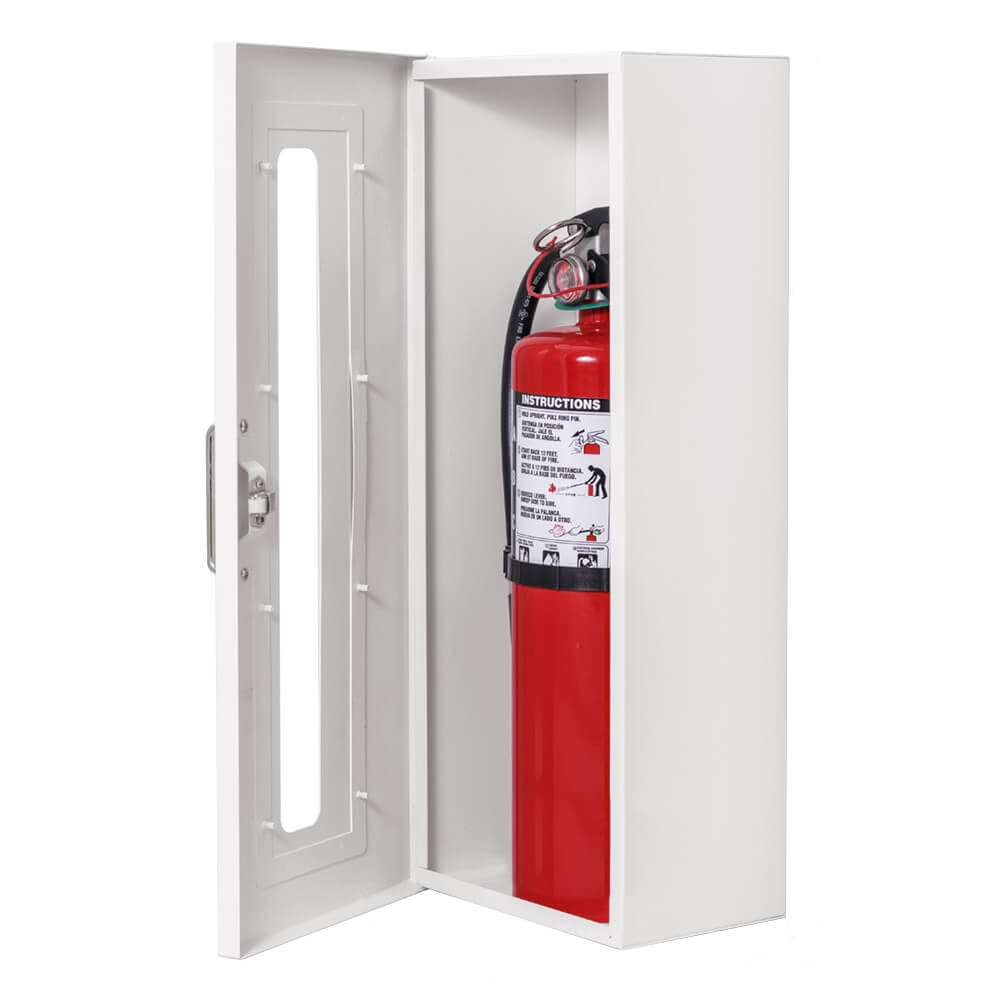

The Model 208-EL cabinet features a vertical duo door, 16 gauge cold rolled steel front and 22 gauge cold rolled steel tub. Standard finish is baked white enamel over rust inhibiting phosphate treated steel. Other options include red or black enamel coat and stainless steel. Cabinet is designed to be surface mounted and has a square trim. Cabinet comes standard with chrome handle and clear acrylic glazing.

Note: Extinguisher sold separately.

Weight 25 lbs
Model #

208-EL

Cabinet Style

Surface Mounted

Cabinet Type

Non-Rated

Door Style

Vertical Duo

Series

Elite Architectural

Accommodates Extinguisher Size

20 lb.

Interior Tub - Width

12"

Interior Tub - Height

27"

Interior Tub - Depth

8"

Overall - Width

12 1/2"

Overall - Height

27 1/2"

Finish Options

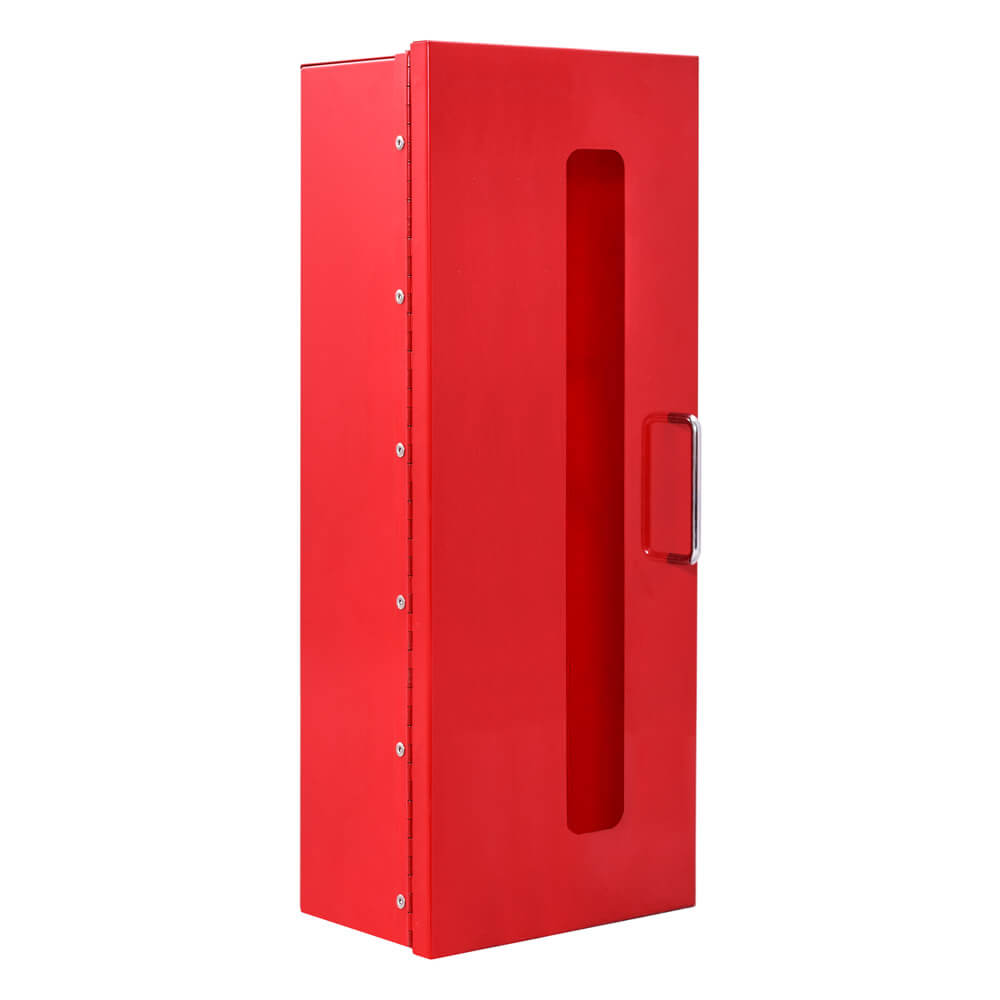

Baked White Enamel, Baked Red Enamel, Stainless Steel Front w/ White Tub, Full Stainless Steel

Glazing Options

Clear Acrylic, Clear Tempered Glass

Handle Options

Chrome "D" Handle, Chrome "D" Handle w/ Safety Break Lock, Aluminum Die Cast Red "Fire" Handle, ADA "Recessed" Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Elite Non-Rated Fire Extinguisher Cabinet Dimension Drawing
