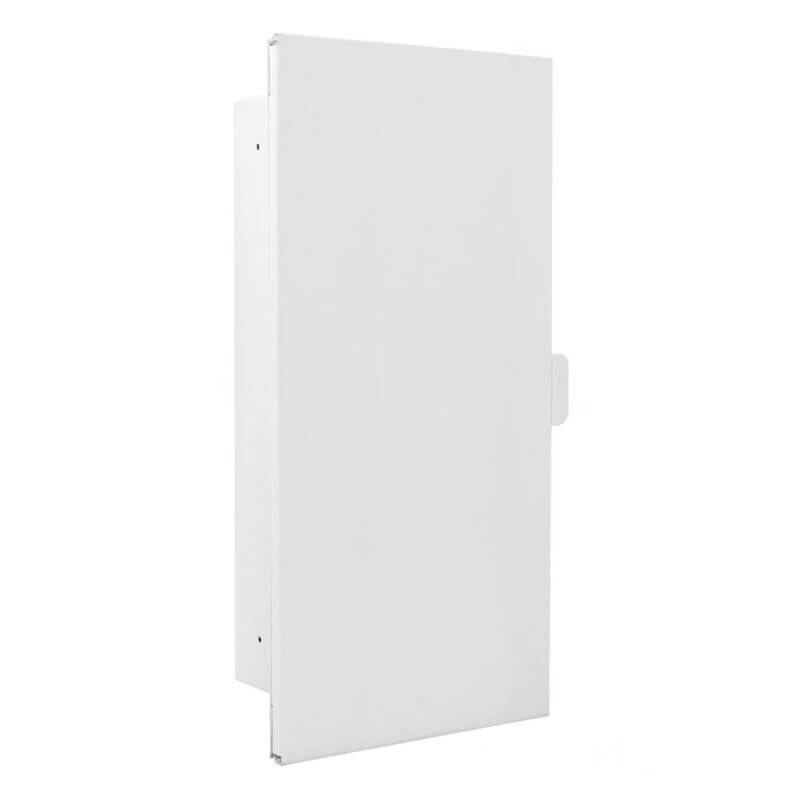

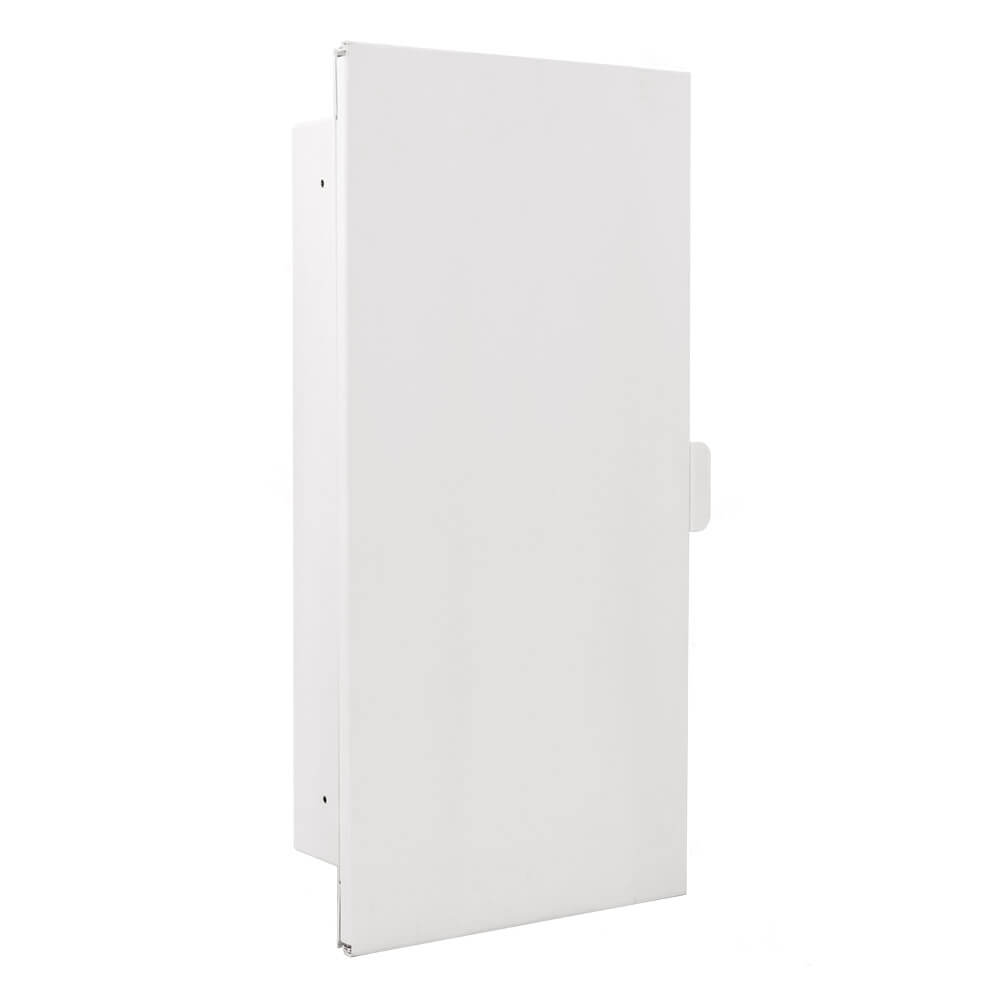

527-SN-SG Sonoma Trimless Series Fully-Recessed 5 lb. Fire Extinguisher Cabinet with Full Metal Door (Fire-Rated)


The Model 527-SN-SG SAFEGUARD fire-rated cabinet features a full metal door, 18 gauge cold rolled steel front and 22 gauge cold rolled steel tub. Standard finish is baked white enamel over rust inhibiting phosphate treated steel. Other options include red or black enamel coat and stainless steel. Cabinet is designed to be fully-recessed into the wall and has a concealed hinge. The Sonoma’s aesthetically clean appearance blends in with any decor. The cabinet’s trimless design is superior for use in ultra modern interior designed commercial facilities. Cabinet comes standard with flush handle.

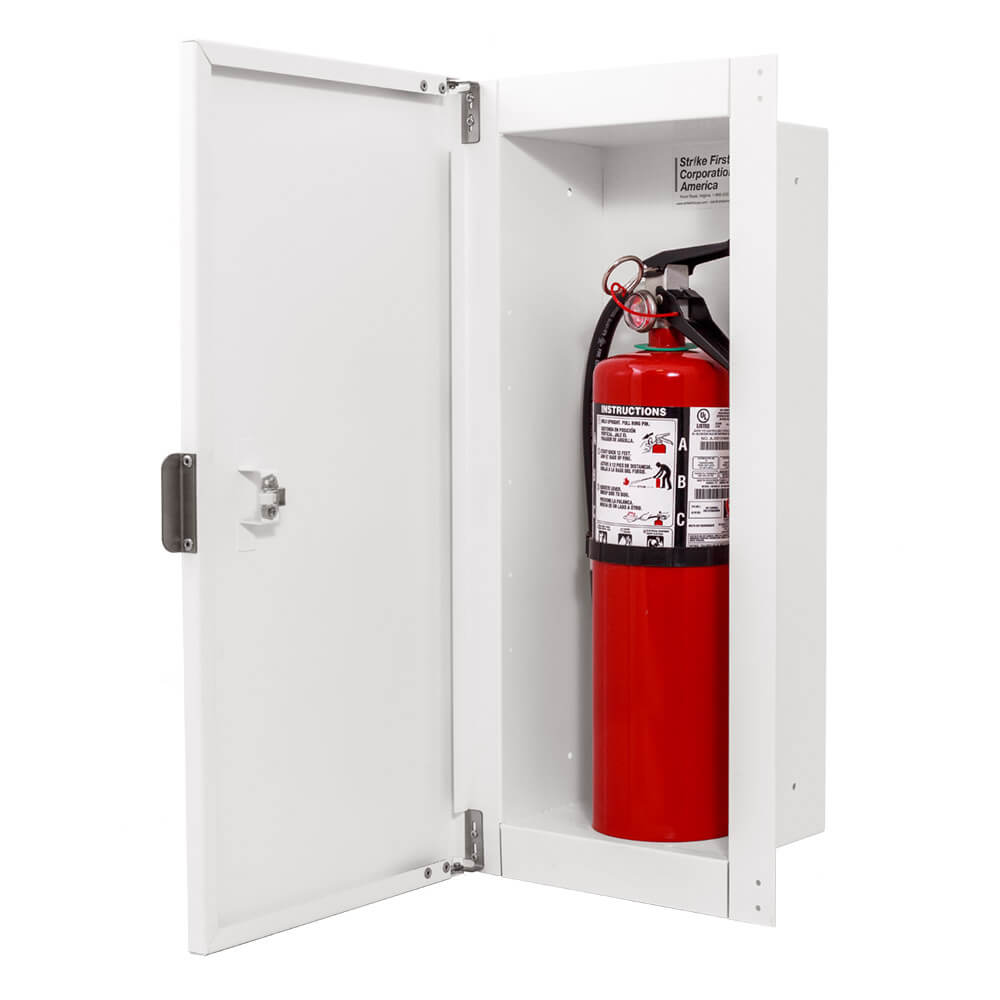

Note: Extinguisher sold separately.

Weight 20 lbs
Model #


Cabinet Style


Cabinet Type


Door Style

Full Metal


Sonoma Trimless

Accommodates Extinguisher Size

5 lb.

Interior Tub - Width


Interior Tub - Height

17", 20"

Interior Tub - Depth


Overall - Width

11 3/4"

Overall - Height

20 3/4"

Rough Opening - Width


Rough Opening - Height


Rough Opening - Depth


Finish Options

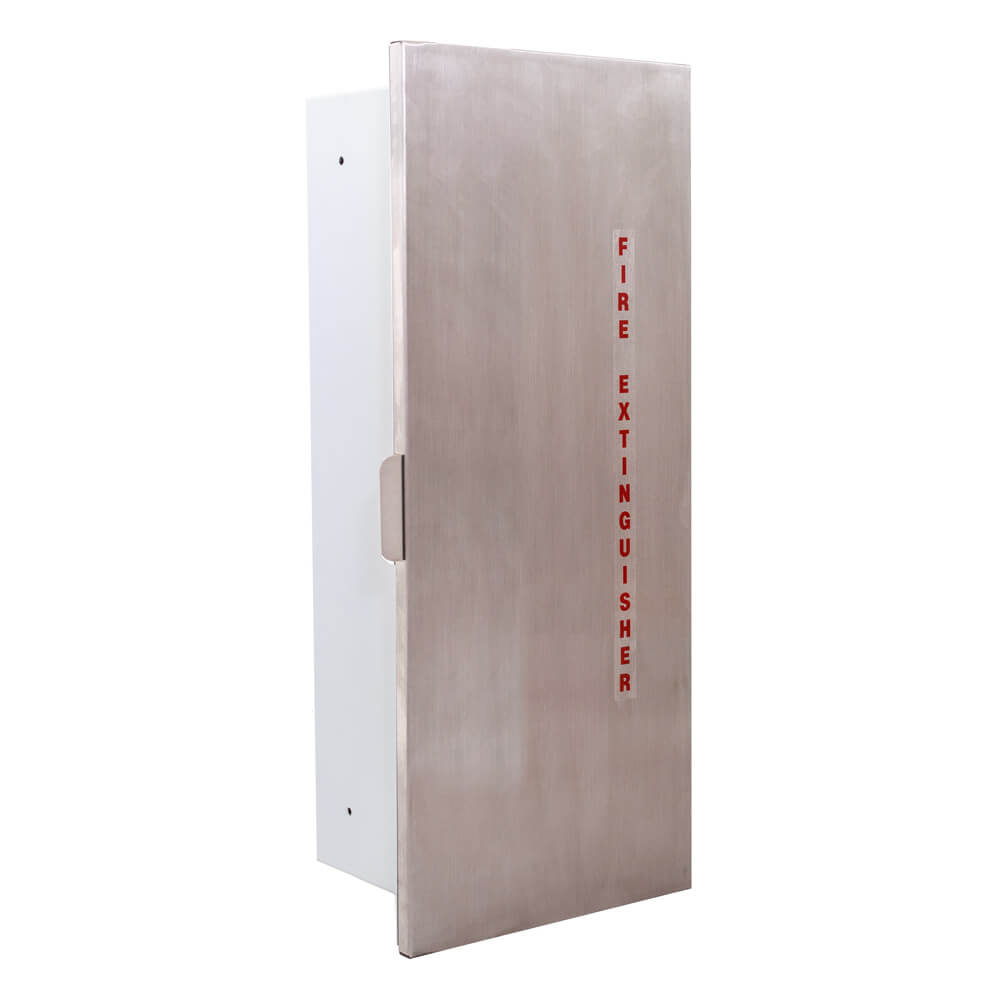

Baked White Enamel, Baked Red Enamel, Baked Black Enamel, Stainless Steel Front w/ White Tub, Full Stainless Steel


Stainless Steel Flush Handle

Lettering Options

Decal "Fire Extinguisher" – Vertical Red, Decal "Fire Extinguisher" – Vertical Black

Sonoma Fire Extinguisher Cabinet Dimension Drawing
